Embedded 180mA 35CM/S CMOS Qr Code Reader Module

Name: Embedded 180mA 35CMS CMOS Qr Code Reader Module
Brand: DYscan
Price: 1 USD

Quality Embedded 180mA 35CM/S CMOS Qr Code Reader Module for sale

Brand Name : DYscan

Model Number : DE2090

Certification : CE ROHS FCC IEC

Place of Origin : Made in China

MOQ : 1pcs

Price : negotiable

Payment Terms : T/T, Western Union ,PAYPAL, L/C

Supply Ability : 10000pcs/ month

Delivery Time : 3-15 days

Packaging Details : 1pcs in box

Scan Type : CMOS

Resolution : 640*480

Reading precision : ≥4mil/0.1mm（PCS90%,CODE 39）

Decoding speed : 35CM/S

Depth of field : 20-500mm

Scan Mode : Manual, Auto sense, command trigger

Print Contrast Signal : ≥20%

Weight : 3.5g

Dimension : 21.4mm L * 15.8mm W* 11.6mm H

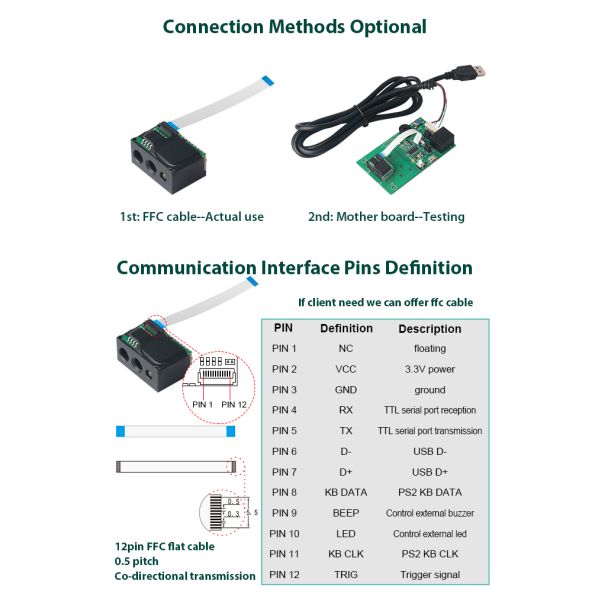

Communication : USB(USB-KBW、USB-COM），TTL

Interface Type : FFC 12PIN Pitch 0.5

Power Supply : DC 3.3V 180mA(Work）

Contact Now

2D Embedded QR Code Reader Vending Machine Mini Barcode Scanner Module QR Code Scanner Module Kiosk

DE2090 is a practical embedded barcode scanner module with leading CMOS image recognition technology and intelligent image recognition system.

It can scan universal 1D 2D codes, support USB, TTL multiple interfaces, read the paper, goods, screens, other media barcodes.

Easily embedded in a variety of OEM products handheld, portable, fixed and barcode collector, etc.

Features

☆ Mini size, widely used in wireless machine, self-service terminal.

☆ Read all mainstream 1D 2D barcodes in the market easily.

☆ High brightness, dark environment scanning, low power consumption.

☆ Interface: USB, TTL.

☆ Support multiple systems and languages, secondary development.

Details

Embedded 180mA 35CM/S CMOS Qr Code Reader Module

Performance

Scan Type	CMOS
Light Source	White light
CPU	32-bit
Resolution	640*480
Reading precision	≥4mil/0.1mm(PCS90%,CODE 39)
Decoding speed	35CM/S
Depth of field	20-500mm
Scan Mode	Manual, Auto sense, command trigger
Scan angle	Pitch:±60°, Roll: ±360°, Skew: ±55°
Print Contrast Signal	≥20%
Ambient Light	Dark environment, indoor natural light
Symbologies	1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded), etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, Aztec,etc.

Physical Parameter

Weight	3.5g
Dimension	21.4mm L * 15.8mm W* 11.6mm H
Communication	USB(USB-KBW,USB-COM),TTL
Interface Type	FFC 12PIN Pitch 0.5
Power Supply	DC 3.3V 180mA(Work)

Environmental

Operating	-20℃ to 50℃
Storage	-40℃ to 60℃
Humidity	5% to 95%(non-condensing)
Drop Height	1.2m
Temp. Test	30 minutes for high Temp., 30 minutes for low Temp.,
HighTemp.	60℃
LowTemp.	-40℃
Transport	10H@125RPM

Embedded 180mA 35CM/S CMOS Qr Code Reader Module
